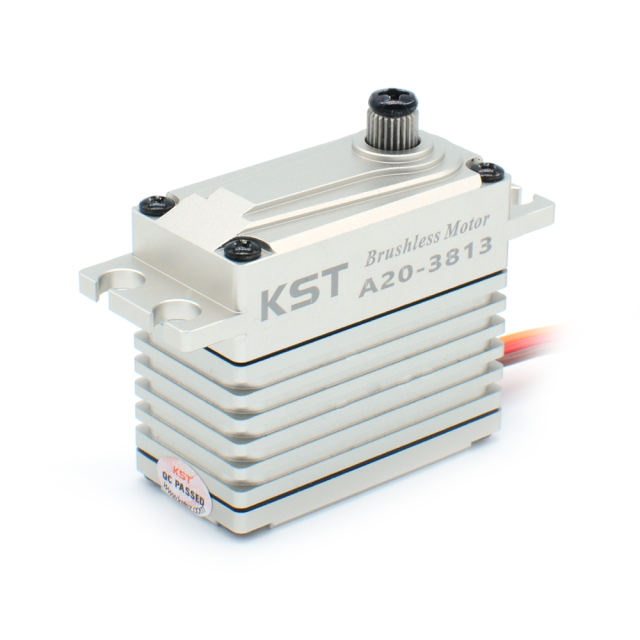

KST A20-3813 - 43kg 0.12sec Brushless HV Phosphor Bronze & Hardened Steel Gear Servo

Name: KST A20-3813 - 43kg 0.12sec Brushless HV Phosphor Bronze & Hardened Steel Gear Servo
Brand: Hobby Porter
SKU: HP0023.0140
Price: 79.2 USD
Availability: InStock

No. HP0023.0140

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you. Talk to our sales team today, OEM and ODM services are also available for custom installations.

Description:
Operation Voltage(rated) DC7.4V
Operation Voltage Range DC6.0V-8.4V
Torque [email protected] [email protected] [email protected]
Speed 0.15sec/60°@6.0V 0.13sec /60°@7.4V 0.12sec /60°@8.4V
Travel Angle ±50°when 1000-2000us
Operating Temperature Range -10℃ to +55℃
Case Material Aluminum Alloy
Motor Type Brushless
Gear Set Material Phosphor Bronze +Hardened Steel
Shielded Connecting Cable 22AWG
Case Dimensions 40.5*20*38mm
Weight 72g

We can build servos with features like these and more!
Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control

Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
